14x14x2mm Carbide Insert for Helical Planer Cutter Head
- Product Name: 14x14x2mm carbide insert for helical planer cutter head
- Hardness: HRA91-93
- Grade: K10.K20
- Surface: High polished
- Suitable for: Spiral cutter head, planer shaft, Tenoning Machine
The carbide woodworking inserts also called carbide wood cutters, it have four cutting sides so the edges can be rotated to expose a new cutting edge when dull or chipped, resulting in very little down time and huge savings over conventional carbide cutters. It’s becomes the first choice of the modern woodworking cutting tool for sharp cutting, smooth surface, strong durability, low noise and high strength.
Description:
1. 100% virgin tungsten carbide.
2. Suitable for solid wood, plywood, dense version, acrylic, plastic, etc.
3. Fast delivery 3 – 10 days.
4. Standard size & customized size available.
5. Long lifetime, high hardness, high wear-resistance.
Specifications:
Drawing | Size |
| 12*12*1.5-35° |
14*14*2-30° | |
15*15*2.5-30° | |
18*18*2.45 | |
| 14.6*14.6*2.5-30° R150 4R0.5 |
14.6*14.6*2.5-30° R150 | |
15*15*2.5-30°（R50 R100 R150) | |
15*15*2.5-30°（R50 R100 R150)4R0.5 |
| 20*12*1.5-35° |
25*12*1.5-35° | |
| 30*12*1.5-35 |
50*12*1.5-35° | |
60*12*1.5-35° |
For more size, please email us directly, we also produce customized size according to your drawings or samples.

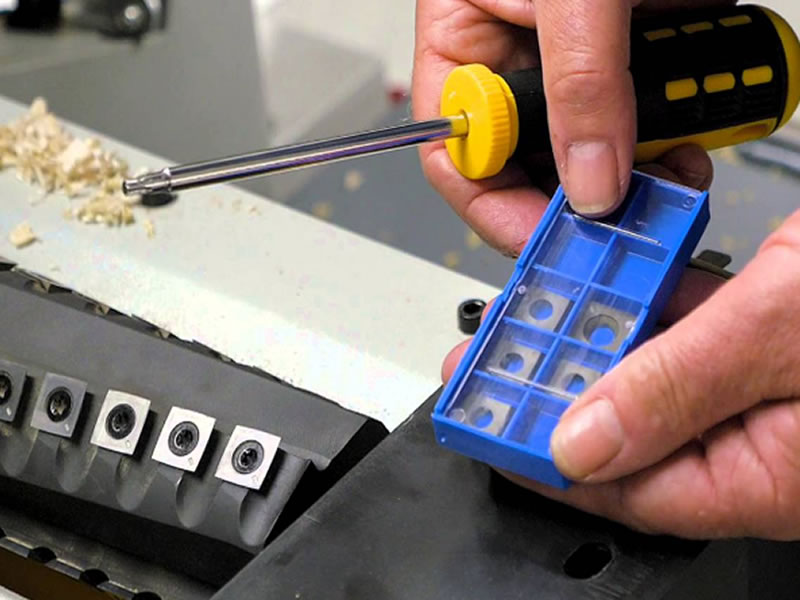

Application Photo:
 |  |

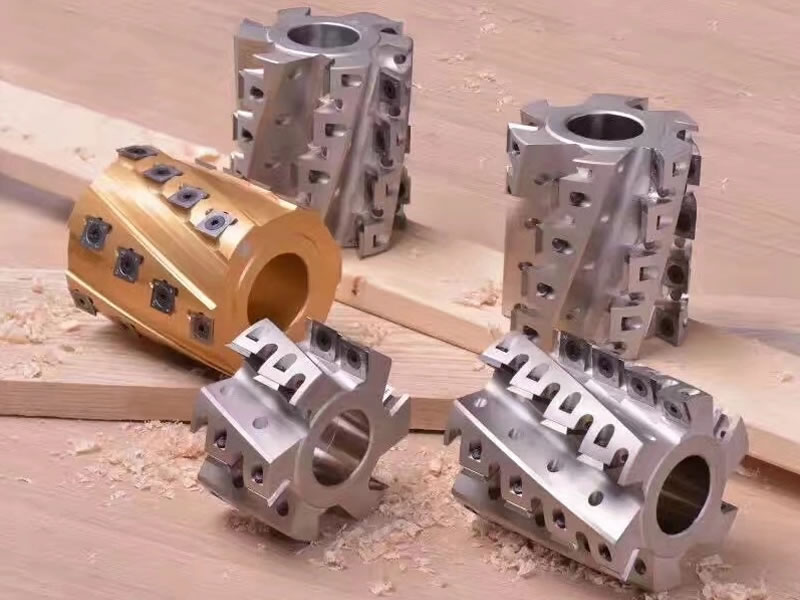

Applicable equipment: 14x14x2mm carbide inserts are suitable for different cutting heads and spiral planner cutter, such as groove cutter, planing cutter and spindle moulder etc, for cutting, grooving and rebating with a long life time.

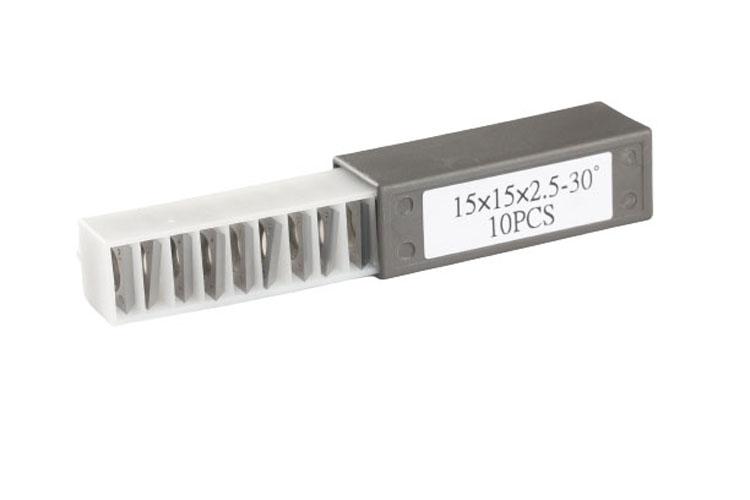

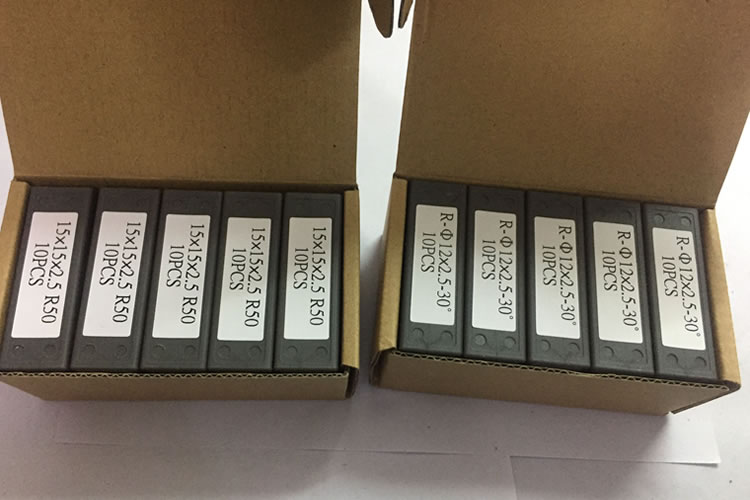

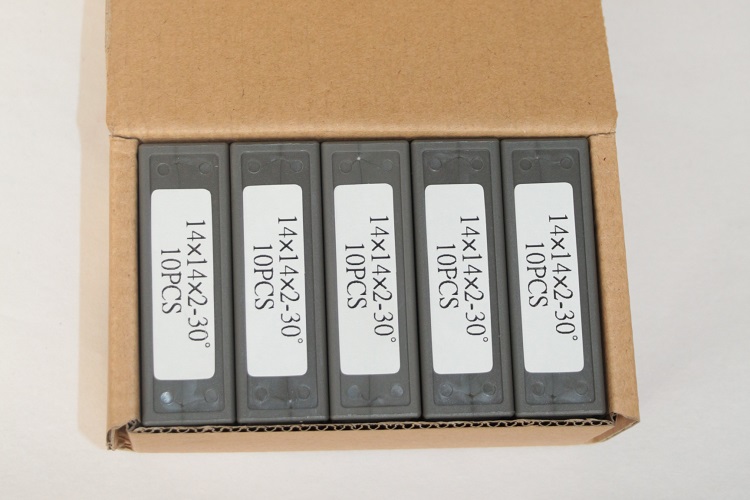

Packing details:
 |  |  |
