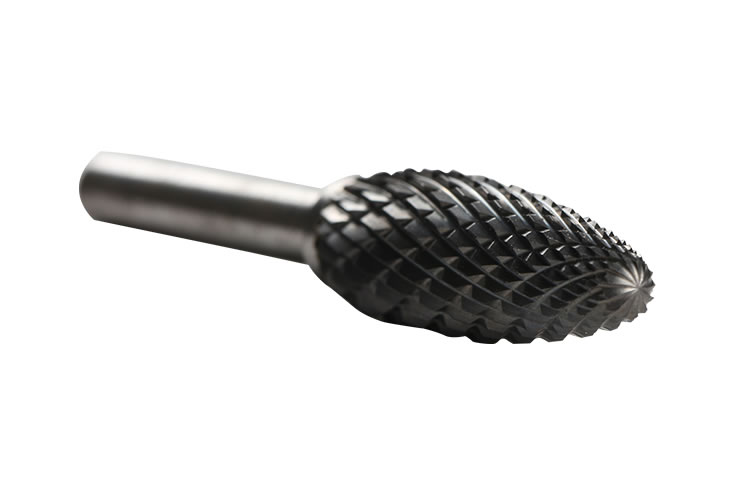

Carbide Burrs in Double Cut
- Product Name: Carbide burrs in double cut
- Material: hard alloy, cemented carbide, tungsten steel
- Density: 14.5-14.8 g/cm3
- Hardness: HRA89-90
- Type: Single cut, double cut, Aluminum cut
Description:
Our Tungsten Carbide Burrs, the ultimate cutting solution for precision and efficiency. Crafted with meticulous attention to detail, our burrs are designed to exceed your expectations and deliver outstanding performance in a wide range of applications.
At the core of our burrs lies the exceptional quality of tungsten carbide, a material renowned for its hardness, durability, and heat resistance. This ensures that our burrs maintain their sharpness and integrity even in the most demanding cutting tasks, providing you with long-lasting reliability and superior results.
Our tungsten carbide burrs are available in a variety of shapes and sizes to cater to your specific needs. From cylindrical, ball-shaped, and tree-shaped burrs to flame, oval, and pointed-end designs, we offer a comprehensive selection to tackle any cutting or shaping task with ease and precision.
| 1. “SC” stands for single flute. More sharper when used with processed metal filamentous | |||||
| 2. “SM” stands for double flutes. Good heat dissipation with processed metal granular | |||||
| 3. “AC” stands for Rough flute. Used to machine aluminum, copper and other softer non-ferrous metals. | |||||
| 4. We can make shank diameter to be 1/8″, 1/4″, 8.0mm and 10.0mm | |||||
| 5. we can make overall length to be 100, 150, 200, 250, 300 | |||||
| Picture | Cylindrical Type A | Unit: mm | |||
| Head diameter | Cutting part length | Shank diameter | Total Length | ||
 | A0313-SC | 3 | 13 | 3 | 38 |
| A0616-SC | 6 | 16 | 6 | 61 | |
| A0820-SC | 8 | 20 | 6 | 65 | |
| A1020-SC | 10 | 20 | 6 | 65 | |
| A1225-SC | 12 | 25 | 6 | 70 | |
| A1625-SC | 16 | 25 | 6 | 70 | |
| A0313-SM | 3 | 13 | 3 | 38 | |
| A0616-SM | 6 | 16 | 6 | 61 | |
| A0820-SM | 8 | 20 | 6 | 65 | |
| A1020-SM | 10 | 20 | 6 | 65 | |
| A1225-SM | 12 | 25 | 6 | 70 | |
| A1625-SM | 16 | 25 | 6 | 70 | |
| A0313-AC | 3 | 13 | 3 | 38 | |
| A0616-AC | 6 | 16 | 6 | 61 | |
| A0820-AC | 8 | 20 | 6 | 65 | |
| A1020-AC | 10 | 20 | 6 | 65 | |
| A1225-AC | 12 | 25 | 6 | 70 | |
| A1625-AC | 16 | 25 | 6 | 70 | |
| Picture | Cylindrical with end teeth, Type B | Unit: mm | |||
| Head diameter | Cutting part length | Shank diameter | Total Length | ||
 | B0313-SC | 3 | 13 | 3 | 38 |
| B0616-SC | 6 | 16 | 6 | 61 | |
| B0820-SC | 8 | 20 | 6 | 65 | |
| B1020-SC | 10 | 20 | 6 | 65 | |
| B1225-SC | 12 | 25 | 6 | 70 | |
| B1625-SC | 16 | 25 | 6 | 70 | |
| B0313-SM | 3 | 13 | 3 | 38 | |
| B0616-SM | 6 | 16 | 6 | 61 | |
| B0820-SM | 8 | 20 | 6 | 65 | |
| B1020-SM | 10 | 20 | 6 | 65 | |
| B1225-SM | 12 | 25 | 6 | 70 | |
| B1625-SM | 16 | 25 | 6 | 70 | |
| B0313-AC | 3 | 13 | 3 | 38 | |
| B0616-AC | 6 | 16 | 6 | 61 | |
| B0820-AC | 8 | 20 | 6 | 65 | |
| B1020-AC | 10 | 20 | 6 | 65 | |
| B1225-AC | 12 | 25 | 6 | 70 | |
| B1625-AC | 16 | 25 | 6 | 70 | |
| Picture | Spherocylindrical, Type C | Unit: mm | |||
| Head diameter | Cutting part length | Shank diameter | Total Length | ||
 | C0313-SC | 3 | 13 | 3 | 38 |
| C0616-SC | 6 | 16 | 6 | 61 | |
| C0820-SC | 8 | 20 | 6 | 65 | |
| C1020-SC | 10 | 20 | 6 | 65 | |
| C1225-SC | 12 | 25 | 6 | 70 | |
| C1625-SC | 16 | 25 | 6 | 70 | |
| C0313-SM | 3 | 13 | 3 | 38 | |
| C0616-SM | 6 | 16 | 6 | 61 | |
| C0820-SM | 8 | 20 | 6 | 65 | |
| C1020-SM | 10 | 20 | 6 | 65 | |
| C1225-SM | 12 | 25 | 6 | 70 | |
| C1625-SM | 16 | 25 | 6 | 70 | |
| C0313-AC | 3 | 13 | 3 | 38 | |
| C0616-AC | 6 | 16 | 6 | 61 | |
| C0820-AC | 8 | 20 | 6 | 65 | |
| C1020-AC | 10 | 20 | 6 | 65 | |
| C1225-AC | 12 | 25 | 6 | 70 | |
| C1625-AC | 16 | 25 | 6 | 70 | |
| Picture | Spherical, Type D | Unit: mm | |||
| Head diameter | Cutting part length | Shank diameter | Total Length | ||
 | D0303-SC | 3 | 3 | 3 | 38 |
| D0605-SC | 6 | 5 | 6 | 50 | |
| D0807-SC | 8 | 7 | 6 | 52 | |
| D1009-SC | 10 | 9 | 6 | 54 | |
| D1210-SC | 12 | 10 | 6 | 55 | |
| D1614-SC | 16 | 14 | 6 | 60 | |
| D0303-SM | 3 | 3 | 3 | 38 | |
| D0605-SM | 6 | 5 | 6 | 50 | |
| D0807-SM | 8 | 7 | 6 | 52 | |
| D1009-SM | 10 | 9 | 6 | 54 | |
| D1210-SM | 12 | 10 | 6 | 55 | |
| D1614-SM | 16 | 14 | 6 | 60 | |
| D0303-AC | 3 | 3 | 3 | 38 | |
| D0605-AC | 6 | 5 | 6 | 50 | |
| D0807-AC | 8 | 7 | 6 | 52 | |
| D1009-AC | 10 | 9 | 6 | 54 | |
| D1210-AC | 12 | 10 | 6 | 55 | |
| D1614-AC | 16 | 14 | 6 | 60 | |
| Picture | Oval, Type E | Unit: mm | |||
| Head diameter | Cutting part length | Shank diameter | Total Length | ||
 | E0610-SC | 6 | 10 | 6 | 55 |
| E0813-SC | 8 | 13 | 6 | 58 | |
| E1016-SC | 10 | 16 | 6 | 61 | |
| E1220-SC | 12 | 20 | 6 | 65 | |
| E1625-SC | 16 | 25 | 6 | 70 | |
| E0306-SM | 3 | 6 | 3 | 38 | |
| E0610-SM | 6 | 10 | 6 | 55 | |
| E0813-SM | 8 | 13 | 6 | 58 | |
| E1016-SM | 10 | 16 | 6 | 61 | |
| E1220-SM | 12 | 20 | 6 | 65 | |
| E1625-SM | 16 | 25 | 6 | 70 | |
| E0306-AC | 3 | 6 | 3 | 38 | |
| E0610-AC | 6 | 10 | 6 | 55 | |
| E0813-AC | 8 | 13 | 6 | 58 | |
| E1016-AC | 10 | 16 | 6 | 61 | |
| E1220-AC | 12 | 20 | 6 | 65 | |
| E1625-AC | 16 | 25 | 6 | 70 | |
| Picture | Hyperbolic with a spherical end, Type F | Unit: mm | |||
| Head diameter | Cutting part length | Shank diameter | Total Length | ||
 | F0313-SC | 3 | 13 | 3 | 38 |
| F0618-SC | 6 | 18 | 6 | 63 | |
| F0820-SC | 8 | 20 | 6 | 65 | |
| F1020-SC | 10 | 20 | 6 | 65 | |
| F1225-SC | 12 | 25 | 6 | 70 | |
| F1625-SC | 16 | 25 | 6 | 70 | |
| F0313-SM | 3 | 13 | 3 | 38 | |
| F0618-SM | 6 | 18 | 6 | 63 | |
| F0820-SM | 8 | 20 | 6 | 65 | |
| F1020-SM | 10 | 20 | 6 | 65 | |
| F1225-SM | 12 | 25 | 6 | 70 | |
| F1625-SM | 16 | 25 | 6 | 70 | |
| F0313-AC | 3 | 13 | 3 | 38 | |
| F0618-AC | 6 | 18 | 6 | 63 | |
| F0820-AC | 8 | 20 | 6 | 65 | |
| F1020-AC | 10 | 20 | 6 | 65 | |
| F1225-AC | 12 | 25 | 6 | 70 | |
| F1625-AC | 16 | 25 | 6 | 70 | |
| Picture | Hyperbolic with point end, Type G | Unit: mm | |||
| Head diameter | Cutting part length | Shank diameter | Total Length | ||
 | G0313-SC | 3 | 13 | 3 | 38 |
| G0618-SC | 6 | 18 | 6 | 63 | |
| G0820-SC | 8 | 20 | 6 | 65 | |
| G1020-SC | 10 | 20 | 6 | 65 | |
| G1225-SC | 12 | 25 | 6 | 70 | |
| G1625-SC | 16 | 25 | 6 | 70 | |
| G0313-SM | 3 | 13 | 3 | 38 | |
| G0618-SM | 6 | 18 | 6 | 63 | |
| G0820-SM | 8 | 20 | 6 | 65 | |
| G1020-SM | 10 | 20 | 6 | 65 | |
| G1225-SM | 12 | 25 | 6 | 70 | |
| G1625-SM | 16 | 25 | 6 | 70 | |
| G0313-AC | 3 | 13 | 3 | 38 | |
| G0618-AC | 6 | 18 | 6 | 63 | |
| G0820-AC | 8 | 20 | 6 | 65 | |
| G1020-AC | 10 | 20 | 6 | 65 | |
| G1225-AC | 12 | 25 | 6 | 70 | |
| G1625-AC | 16 | 25 | 6 | 70 | |
| Picture | Flame-like Type H | Unit: mm | |||
| Head diameter | Cutting part length | Shank diameter | Total Length | ||
 | H0307-SC | 3 | 7 | 3 | 52 |
| H0618-SC | 6 | 18 | 6 | 63 | |
| H0820-SC | 8 | 20 | 6 | 65 | |
| H1025-SC | 10 | 25 | 6 | 70 | |
| H1232-SC | 12 | 32 | 6 | 77 | |
| H1636-SC | 16 | 36 | 6 | 81 | |
| H0307-SM | 3 | 7 | 3 | 52 | |
| H0618-SM | 6 | 18 | 6 | 63 | |
| H0820-SM | 8 | 20 | 6 | 65 | |
| H1025-SM | 10 | 25 | 6 | 70 | |
| H1232-SM | 12 | 32 | 6 | 77 | |
| H1636-SM | 16 | 36 | 6 | 81 | |
| H0307-AC | 3 | 7 | 3 | 52 | |
| H0618-AC | 6 | 18 | 6 | 63 | |
| H0820-AC | 8 | 20 | 6 | 65 | |
| H1025-AC | 10 | 25 | 6 | 70 | |
| H1232-AC | 12 | 32 | 6 | 77 | |
| H1636-AC | 16 | 36 | 6 | 81 | |
| Picture | Countersink, Type J | Unit: mm | |||
| Head diameter | Cutting part length | Shank diameter | Total Length | ||
 | J0302-SC | 3 | 2 | 3 | 38 |
| J0605-SC | 6 | 5 | 6 | 55 | |
| J0807-SC | 8 | 7 | 6 | 57 | |
| J1008-SC | 10 | 8 | 6 | 58 | |
| J1210-SC | 12 | 10 | 6 | 60 | |
| J1613-SC | 16 | 13 | 6 | 62 | |
| J0302-SM | 3 | 2 | 3 | 38 | |
| J0605-SM | 6 | 5 | 6 | 55 | |
| J0807-SM | 8 | 7 | 6 | 57 | |
| J1008-SM | 10 | 8 | 6 | 58 | |
| J1210-SM | 12 | 10 | 6 | 60 | |
| J1613-SM | 16 | 13 | 6 | 62 | |
 | K0301-SC | 3 | 1.5 | 3 | 38 |
| K0603-SC | 6 | 3 | 6 | 51 | |
| K0804-SC | 8 | 4 | 6 | 54 | |
| K1005-SC | 10 | 5 | 6 | 55 | |
| K1206-SC | 12 | 6 | 6 | 57 | |
| K1608-SC | 16 | 8 | 6 | 60 | |
| K0301-SM | 3 | 1.5 | 3 | 38 | |
| K0603-SM | 6 | 3 | 6 | 51 | |
| K0804-SM | 8 | 4 | 6 | 54 | |
| K1005-SM | 10 | 5 | 6 | 55 | |
| K1206-SM | 12 | 6 | 6 | 57 | |
| K1608-SM | 16 | 8 | 6 | 60 | |
| Picture | Sphero-conical, Type L | Unit: mm | |||
| Head diameter | Cutting part length | Shank diameter | Total Length | ||
 | L0313-SC | 3 | 13 | 3 | 38 |
| L0616-SC | 6 | 16 | 6 | 61 | |
| L0822-SC | 8 | 22 | 6 | 67 | |
| L1025-SC | 10 | 25 | 6 | 70 | |
| L1228-SC | 12 | 28 | 6 | 73 | |
| L1633-SC | 16 | 33 | 6 | 78 | |
| L0313-SM | 3 | 13 | 3 | 38 | |
| L0616-SM | 6 | 16 | 6 | 61 | |
| L0822-SM | 8 | 22 | 6 | 67 | |
| L1025-SM | 10 | 25 | 6 | 70 | |
| L1228-SM | 12 | 28 | 6 | 73 | |
| L1633-SM | 16 | 33 | 6 | 78 | |
| L0313-AC | 3 | 13 | 3 | 38 | |
| L0616-AC | 6 | 16 | 6 | 61 | |
| L0822-AC | 8 | 22 | 6 | 67 | |
| L1025-AC | 10 | 25 | 6 | 70 | |
| L1228-AC | 12 | 28 | 6 | 73 | |
| L1633-AC | 16 | 33 | 6 | 78 | |
 | M0316-SC | 3 | 16 | 3 | 38 |
| M0618-SC | 6 | 18 | 6 | 63 | |
| M0820-SC | 8 | 20 | 6 | 65 | |
| M1020-SC | 10 | 20 | 6 | 65 | |
| M1225-SC | 12 | 25 | 6 | 70 | |
| M1625-SC | 16 | 25 | 6 | 70 | |
| M0316-SM | 3 | 16 | 3 | 38 | |
| M0618-SM | 6 | 18 | 6 | 63 | |
| M0820-SM | 8 | 20 | 6 | 65 | |
| M1020-SM | 10 | 20 | 6 | 65 | |
| M1225-SM | 12 | 25 | 6 | 70 | |
| M1625-SM | 16 | 25 | 6 | 70 | |
| M0316-AC | 3 | 16 | 3 | 38 | |
| M0618-AC | 6 | 18 | 6 | 63 | |
| M0820-AC | 8 | 20 | 6 | 65 | |
| M1020-AC | 10 | 20 | 6 | 65 | |
| M1225-AC | 12 | 25 | 6 | 70 | |
| M1625-AC | 16 | 25 | 6 | 70 | |
 | N0304-SC | 3 | 4 | 3 | 38 |
| N0607-SC | 6 | 7 | 6 | 52 | |
| N0809-SC | 8 | 9 | 6 | 54 | |
| N1011-SC | 10 | 11 | 6 | 56 | |
| N1213-SC | 12 | 13 | 6 | 58 | |
| N1616-SC | 16 | 16 | 6 | 61 | |
| N0304-SM | 3 | 4 | 3 | 38 | |
| N0607-SM | 6 | 7 | 6 | 52 | |
| N0809-SM | 8 | 9 | 6 | 54 | |
| N1011-SM | 10 | 11 | 6 | 56 | |
| N1213-SM | 12 | 13 | 6 | 58 | |
| N1616-SM | 16 | 16 | 6 | 61 | |
| N0304-AC | 3 | 4 | 3 | 38 | |
| N0607-AC | 6 | 7 | 6 | 52 | |
| N0809-AC | 8 | 9 | 6 | 54 | |
| N1011-AC | 10 | 11 | 6 | 56 | |
| N1213-AC | 12 | 13 | 6 | 58 | |
| N1616-AC | 16 | 16 | 6 | 61 | |
