Tungsten Carbide Burrs
- Product Name: Tungsten carbide burrs
- Material: Hard alloy, cemented carbide, tungsten steel
- Density: 14.5-14.8 g/cm3
- Hardness: HRA89-90
- Type: Single cut, double cut, Aluminum cut
- Features: Long service life, high accuracy, great efficiency
Description:
What are Burrs?
Carbide rotary burrs is also referred to as rotary files or grinder bits. They are used for cutting, grinding, deburring the welds, mould, dies and
forgings. It can be used with both electrically-powered and pneumatically-powered hand-held tools to cut the most diverse types of material.
Carbide Burrs can be used on many materials:
1. Aluminum, Cast iron
2. Brass, Titanium alloys
3. Copper, Zinc alloys
4. Bronze, Various plastic
5. Zinc, Wood
6. Steel, Carbide Steel, Stainless Steel
We offer carbide burrs commonly in two cuts: Single Cut and Double cut.
Single Cut Burrs are generally used in milling, cleaning, deburring and cleaning. They have one cutting edge and will remove material quickly. Double Cut Burrs is the most popular cut and widely used in most applications, which creates small chips. They have more cutting edges and will remove material faster. Please check the difference between them:
| Single cut | Double Cut | |
| Comparison | Heavy removal of material | Medium light removal of material |
| Cleaning | Cleaning | |
| Creates long chips | Creates small chips | |
| Deburring | Deburring | |
| Applications | Stainless steel, hardened steel, copper, ferrous metals, and cast irons | Ferrous and non ferrous metals, aluminum, soft steel, all non-metal materials such as plastics and wood |
Specifications:
 |  |
| Name: | Tungsten carbide burrs |
| Other names: | tungsten rotary burrs, tungsten metal burrs, cemented rotary burrs |
| Features | long working life, high stock removal, ideal for using on many tough materials. Ideal for finishing, carving, shaping and deburring welds, moulds, dies and forgings. |
| For drilling holes in hard metals | carbide micro drills, or carbide straight shank drills |
| For cutting slots, routing, profiling, | carbide end mill, carbide router, or slot drill |
| For cutting stone or glass | Diamond Burr |
| 1. “SC” stands for single flute. More sharper when used with processed metal filamentous | |||||
| 2. “SM” stands for double flutes. Good heat dissipation with processed metal granular | |||||
| 3. “AC” stands for Rough flute. Used to machine aluminum, copper and other softer non-ferrous metals. | |||||
| 4. We can make shank diameter to be 1/8″, 1/4″, 8.0mm and 10.0mm | |||||
| 5. we can make overall length to be 100, 150, 200, 250, 300 | |||||
| Picture | Cylindrical Type A | Unit: mm | |||
| Head diameter | Cutting part length | Shank diameter | Total Length | ||
| A0313-SC | 3 | 13 | 3 | 38 |
| A0616-SC | 6 | 16 | 6 | 61 | |
| A0820-SC | 8 | 20 | 6 | 65 | |
| A1020-SC | 10 | 20 | 6 | 65 | |
| A1225-SC | 12 | 25 | 6 | 70 | |
| A1625-SC | 16 | 25 | 6 | 70 | |
| A0313-SM | 3 | 13 | 3 | 38 | |
| A0616-SM | 6 | 16 | 6 | 61 | |
| A0820-SM | 8 | 20 | 6 | 65 | |
| A1020-SM | 10 | 20 | 6 | 65 | |
| A1225-SM | 12 | 25 | 6 | 70 | |
| A1625-SM | 16 | 25 | 6 | 70 | |
| A0313-AC | 3 | 13 | 3 | 38 | |
| A0616-AC | 6 | 16 | 6 | 61 | |
| A0820-AC | 8 | 20 | 6 | 65 | |
| A1020-AC | 10 | 20 | 6 | 65 | |
| A1225-AC | 12 | 25 | 6 | 70 | |
| A1625-AC | 16 | 25 | 6 | 70 | |
| Picture | Cylindrical with end teeth, Type B | Unit: mm | |||
| Head diameter | Cutting part length | Shank diameter | Total Length | ||
| B0313-SC | 3 | 13 | 3 | 38 |
| B0616-SC | 6 | 16 | 6 | 61 | |
| B0820-SC | 8 | 20 | 6 | 65 | |
| B1020-SC | 10 | 20 | 6 | 65 | |
| B1225-SC | 12 | 25 | 6 | 70 | |
| B1625-SC | 16 | 25 | 6 | 70 | |
| B0313-SM | 3 | 13 | 3 | 38 | |
| B0616-SM | 6 | 16 | 6 | 61 | |
| B0820-SM | 8 | 20 | 6 | 65 | |
| B1020-SM | 10 | 20 | 6 | 65 | |
| B1225-SM | 12 | 25 | 6 | 70 | |
| B1625-SM | 16 | 25 | 6 | 70 | |
| B0313-AC | 3 | 13 | 3 | 38 | |
| B0616-AC | 6 | 16 | 6 | 61 | |
| B0820-AC | 8 | 20 | 6 | 65 | |
| B1020-AC | 10 | 20 | 6 | 65 | |
| B1225-AC | 12 | 25 | 6 | 70 | |
| B1625-AC | 16 | 25 | 6 | 70 | |

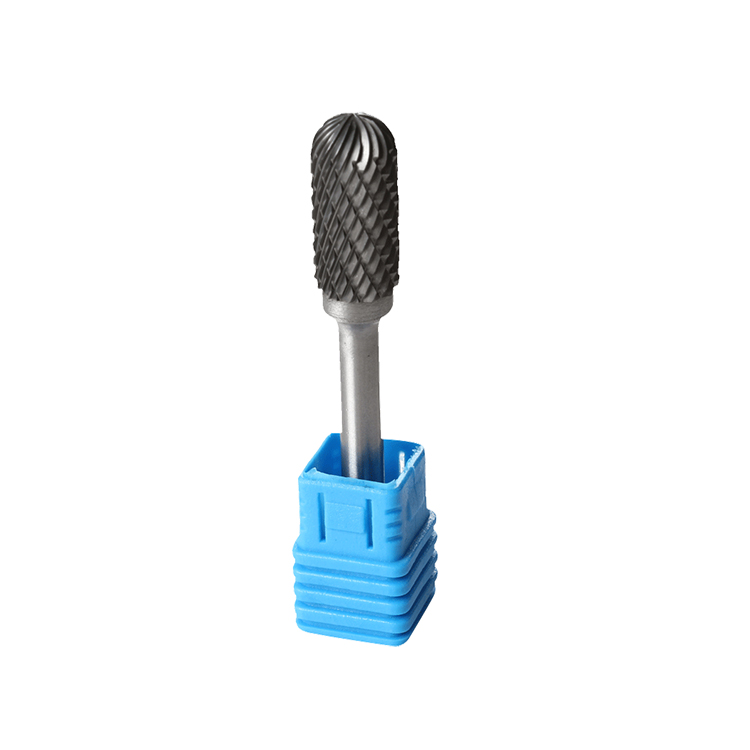

| Picture | Spherocylindrical, Type C | Unit: mm | |||
| Head diameter | Cutting part length | Shank diameter | Total Length | ||
| C0313-SC | 3 | 13 | 3 | 38 |
| C0616-SC | 6 | 16 | 6 | 61 | |
| C0820-SC | 8 | 20 | 6 | 65 | |
| C1020-SC | 10 | 20 | 6 | 65 | |
| C1225-SC | 12 | 25 | 6 | 70 | |
| C1625-SC | 16 | 25 | 6 | 70 | |
| C0313-SM | 3 | 13 | 3 | 38 | |
| C0616-SM | 6 | 16 | 6 | 61 | |
| C0820-SM | 8 | 20 | 6 | 65 | |
| C1020-SM | 10 | 20 | 6 | 65 | |
| C1225-SM | 12 | 25 | 6 | 70 | |
| C1625-SM | 16 | 25 | 6 | 70 | |
| C0313-AC | 3 | 13 | 3 | 38 | |
| C0616-AC | 6 | 16 | 6 | 61 | |
| C0820-AC | 8 | 20 | 6 | 65 | |
| C1020-AC | 10 | 20 | 6 | 65 | |
| C1225-AC | 12 | 25 | 6 | 70 | |
| C1625-AC | 16 | 25 | 6 | 70 | |

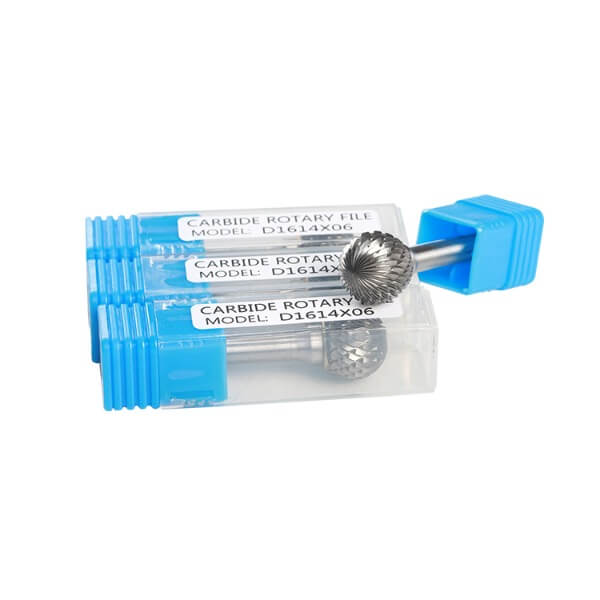

| Picture | Spherical, Type D | Unit: mm | |||
| Head diameter | Cutting part length | Shank diameter | Total Length | ||
 | D0303-SC | 3 | 3 | 3 | 38 |
| D0605-SC | 6 | 5 | 6 | 50 | |
| D0807-SC | 8 | 7 | 6 | 52 | |
| D1009-SC | 10 | 9 | 6 | 54 | |
| D1210-SC | 12 | 10 | 6 | 55 | |
| D1614-SC | 16 | 14 | 6 | 60 | |
| D0303-SM | 3 | 3 | 3 | 38 | |
| D0605-SM | 6 | 5 | 6 | 50 | |
| D0807-SM | 8 | 7 | 6 | 52 | |
| D1009-SM | 10 | 9 | 6 | 54 | |
| D1210-SM | 12 | 10 | 6 | 55 | |
| D1614-SM | 16 | 14 | 6 | 60 | |
| D0303-AC | 3 | 3 | 3 | 38 | |
| D0605-AC | 6 | 5 | 6 | 50 | |
| D0807-AC | 8 | 7 | 6 | 52 | |
| D1009-AC | 10 | 9 | 6 | 54 | |
| D1210-AC | 12 | 10 | 6 | 55 | |
| D1614-AC | 16 | 14 | 6 | 60 | |
| Picture | Oval, Type E | Unit: mm | |||
| Head diameter | Cutting part length | Shank diameter | Total Length | ||
| E0610-SC | 6 | 10 | 6 | 55 |
| E0813-SC | 8 | 13 | 6 | 58 | |
| E1016-SC | 10 | 16 | 6 | 61 | |
| E1220-SC | 12 | 20 | 6 | 65 | |
| E1625-SC | 16 | 25 | 6 | 70 | |
| E0306-SM | 3 | 6 | 3 | 38 | |
| E0610-SM | 6 | 10 | 6 | 55 | |
| E0813-SM | 8 | 13 | 6 | 58 | |
| E1016-SM | 10 | 16 | 6 | 61 | |
| E1220-SM | 12 | 20 | 6 | 65 | |
| E1625-SM | 16 | 25 | 6 | 70 | |
| E0306-AC | 3 | 6 | 3 | 38 | |
| E0610-AC | 6 | 10 | 6 | 55 | |
| E0813-AC | 8 | 13 | 6 | 58 | |
| E1016-AC | 10 | 16 | 6 | 61 | |
| E1220-AC | 12 | 20 | 6 | 65 | |
| E1625-AC | 16 | 25 | 6 | 70 | |

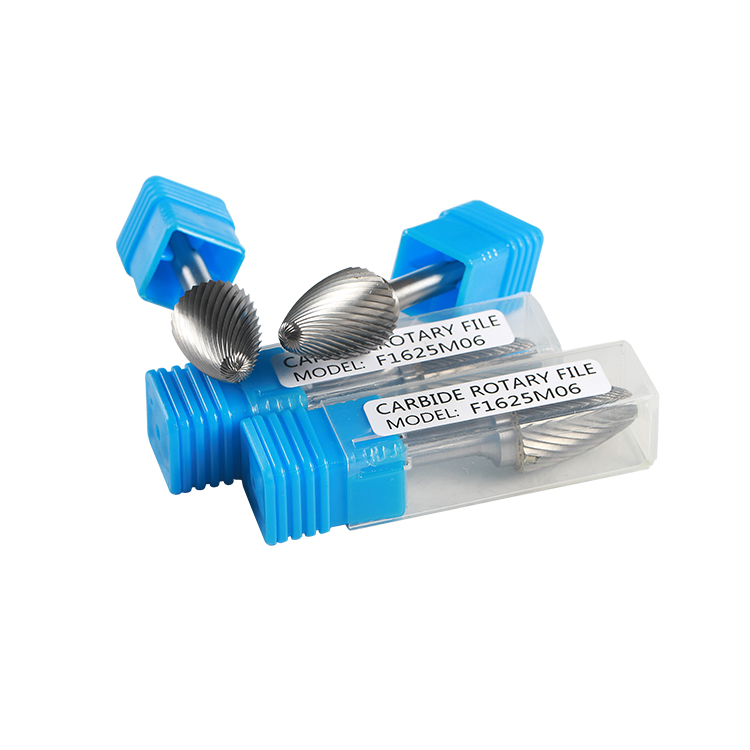

| Picture | Hyperbolic with a spherical end, Type F | Unit: mm | |||
| Head diameter | Cutting part length | Shank diameter | Total Length | ||
 | F0313-SC | 3 | 13 | 3 | 38 |
| F0618-SC | 6 | 18 | 6 | 63 | |
| F0820-SC | 8 | 20 | 6 | 65 | |
| F1020-SC | 10 | 20 | 6 | 65 | |
| F1225-SC | 12 | 25 | 6 | 70 | |
| F1625-SC | 16 | 25 | 6 | 70 | |
| F0313-SM | 3 | 13 | 3 | 38 | |
| F0618-SM | 6 | 18 | 6 | 63 | |
| F0820-SM | 8 | 20 | 6 | 65 | |
| F1020-SM | 10 | 20 | 6 | 65 | |
| F1225-SM | 12 | 25 | 6 | 70 | |
| F1625-SM | 16 | 25 | 6 | 70 | |
| F0313-AC | 3 | 13 | 3 | 38 | |
| F0618-AC | 6 | 18 | 6 | 63 | |
| F0820-AC | 8 | 20 | 6 | 65 | |
| F1020-AC | 10 | 20 | 6 | 65 | |
| F1225-AC | 12 | 25 | 6 | 70 | |
| F1625-AC | 16 | 25 | 6 | 70 | |
| Picture | Hyperbolic with point end, Type G | Unit: mm | |||
| Head diameter | Cutting part length | Shank diameter | Total Length | ||
 | G0313-SC | 3 | 13 | 3 | 38 |
| G0618-SC | 6 | 18 | 6 | 63 | |
| G0820-SC | 8 | 20 | 6 | 65 | |
| G1020-SC | 10 | 20 | 6 | 65 | |
| G1225-SC | 12 | 25 | 6 | 70 | |
| G1625-SC | 16 | 25 | 6 | 70 | |
| G0313-SM | 3 | 13 | 3 | 38 | |
| G0618-SM | 6 | 18 | 6 | 63 | |
| G0820-SM | 8 | 20 | 6 | 65 | |
| G1020-SM | 10 | 20 | 6 | 65 | |
| G1225-SM | 12 | 25 | 6 | 70 | |
| G1625-SM | 16 | 25 | 6 | 70 | |
| G0313-AC | 3 | 13 | 3 | 38 | |
| G0618-AC | 6 | 18 | 6 | 63 | |
| G0820-AC | 8 | 20 | 6 | 65 | |
| G1020-AC | 10 | 20 | 6 | 65 | |
| G1225-AC | 12 | 25 | 6 | 70 | |
| G1625-AC | 16 | 25 | 6 | 70 | |
| Picture | Flame-like Type H | Unit: mm | |||
| Head diameter | Cutting part length | Shank diameter | Total Length | ||
 | H0307-SC | 3 | 7 | 3 | 52 |
| H0618-SC | 6 | 18 | 6 | 63 | |
| H0820-SC | 8 | 20 | 6 | 65 | |
| H1025-SC | 10 | 25 | 6 | 70 | |
| H1232-SC | 12 | 32 | 6 | 77 | |
| H1636-SC | 16 | 36 | 6 | 81 | |
| H0307-SM | 3 | 7 | 3 | 52 | |
| H0618-SM | 6 | 18 | 6 | 63 | |
| H0820-SM | 8 | 20 | 6 | 65 | |
| H1025-SM | 10 | 25 | 6 | 70 | |
| H1232-SM | 12 | 32 | 6 | 77 | |
| H1636-SM | 16 | 36 | 6 | 81 | |
| H0307-AC | 3 | 7 | 3 | 52 | |
| H0618-AC | 6 | 18 | 6 | 63 | |
| H0820-AC | 8 | 20 | 6 | 65 | |
| H1025-AC | 10 | 25 | 6 | 70 | |
| H1232-AC | 12 | 32 | 6 | 77 | |
| H1636-AC | 16 | 36 | 6 | 81 | |
| Picture | Countersink, Type J | Unit: mm | |||
| Head diameter | Cutting part length | Shank diameter | Total Length | ||
 | J0302-SC | 3 | 2 | 3 | 38 |
| J0605-SC | 6 | 5 | 6 | 55 | |
| J0807-SC | 8 | 7 | 6 | 57 | |
| J1008-SC | 10 | 8 | 6 | 58 | |
| J1210-SC | 12 | 10 | 6 | 60 | |
| J1613-SC | 16 | 13 | 6 | 62 | |
| J0302-SM | 3 | 2 | 3 | 38 | |
| J0605-SM | 6 | 5 | 6 | 55 | |
| J0807-SM | 8 | 7 | 6 | 57 | |
| J1008-SM | 10 | 8 | 6 | 58 | |
| J1210-SM | 12 | 10 | 6 | 60 | |
| J1613-SM | 16 | 13 | 6 | 62 | |
 | K0301-SC | 3 | 1.5 | 3 | 38 |
| K0603-SC | 6 | 3 | 6 | 51 | |
| K0804-SC | 8 | 4 | 6 | 54 | |
| K1005-SC | 10 | 5 | 6 | 55 | |
| K1206-SC | 12 | 6 | 6 | 57 | |
| K1608-SC | 16 | 8 | 6 | 60 | |
| K0301-SM | 3 | 1.5 | 3 | 38 | |
| K0603-SM | 6 | 3 | 6 | 51 | |
| K0804-SM | 8 | 4 | 6 | 54 | |
| K1005-SM | 10 | 5 | 6 | 55 | |
| K1206-SM | 12 | 6 | 6 | 57 | |
| K1608-SM | 16 | 8 | 6 | 60 | |
| Picture | Sphero-conical, Type L | Unit: mm | |||
| Head diameter | Cutting part length | Shank diameter | Total Length | ||
 | L0313-SC | 3 | 13 | 3 | 38 |
| L0616-SC | 6 | 16 | 6 | 61 | |
| L0822-SC | 8 | 22 | 6 | 67 | |
| L1025-SC | 10 | 25 | 6 | 70 | |
| L1228-SC | 12 | 28 | 6 | 73 | |
| L1633-SC | 16 | 33 | 6 | 78 | |
| L0313-SM | 3 | 13 | 3 | 38 | |
| L0616-SM | 6 | 16 | 6 | 61 | |
| L0822-SM | 8 | 22 | 6 | 67 | |
| L1025-SM | 10 | 25 | 6 | 70 | |
| L1228-SM | 12 | 28 | 6 | 73 | |
| L1633-SM | 16 | 33 | 6 | 78 | |
| L0313-AC | 3 | 13 | 3 | 38 | |
| L0616-AC | 6 | 16 | 6 | 61 | |
| L0822-AC | 8 | 22 | 6 | 67 | |
| L1025-AC | 10 | 25 | 6 | 70 | |
| L1228-AC | 12 | 28 | 6 | 73 | |
| L1633-AC | 16 | 33 | 6 | 78 | |
 | M0316-SC | 3 | 16 | 3 | 38 |
| M0618-SC | 6 | 18 | 6 | 63 | |
| M0820-SC | 8 | 20 | 6 | 65 | |
| M1020-SC | 10 | 20 | 6 | 65 | |
| M1225-SC | 12 | 25 | 6 | 70 | |
| M1625-SC | 16 | 25 | 6 | 70 | |
| M0316-SM | 3 | 16 | 3 | 38 | |
| M0618-SM | 6 | 18 | 6 | 63 | |
| M0820-SM | 8 | 20 | 6 | 65 | |
| M1020-SM | 10 | 20 | 6 | 65 | |
| M1225-SM | 12 | 25 | 6 | 70 | |
| M1625-SM | 16 | 25 | 6 | 70 | |
| M0316-AC | 3 | 16 | 3 | 38 | |
| M0618-AC | 6 | 18 | 6 | 63 | |
| M0820-AC | 8 | 20 | 6 | 65 | |
| M1020-AC | 10 | 20 | 6 | 65 | |
| M1225-AC | 12 | 25 | 6 | 70 | |
| M1625-AC | 16 | 25 | 6 | 70 | |
 | N0304-SC | 3 | 4 | 3 | 38 |
| N0607-SC | 6 | 7 | 6 | 52 | |
| N0809-SC | 8 | 9 | 6 | 54 | |
| N1011-SC | 10 | 11 | 6 | 56 | |
| N1213-SC | 12 | 13 | 6 | 58 | |
| N1616-SC | 16 | 16 | 6 | 61 | |
| N0304-SM | 3 | 4 | 3 | 38 | |
| N0607-SM | 6 | 7 | 6 | 52 | |
| N0809-SM | 8 | 9 | 6 | 54 | |
| N1011-SM | 10 | 11 | 6 | 56 | |
| N1213-SM | 12 | 13 | 6 | 58 | |
| N1616-SM | 16 | 16 | 6 | 61 | |
| N0304-AC | 3 | 4 | 3 | 38 | |
| N0607-AC | 6 | 7 | 6 | 52 | |
| N0809-AC | 8 | 9 | 6 | 54 | |
| N1011-AC | 10 | 11 | 6 | 56 | |
| N1213-AC | 12 | 13 | 6 | 58 | |
| N1616-AC | 16 | 16 | 6 | 61 | |
